Parts of a Microscope: Functions and Components Explained

Ocular lens: 10x | Objectives: 4x, 10x, 40x, 100x | Total magnification: 40x–1000x | Major components: ~15

The table below groups the most visible microscope parts by their job.

What is the main function of a microscope?

The main function of a microscope is to make small structures visible by combining magnification, resolution, and illumination. A microscope that magnifies but cannot resolve detail produces a large but blurry picture.

• Magnification enlarges the image of a specimen.
• Resolution determines the ability to distinguish fine details.
• Illumination provides light to view the specimen.

How does a microscope magnify objects?

In a compound microscope, the objective lens forms a real image and the eyepiece enlarges that image a second time. The two-stage process is why the total magnification equals the objective magnification times the eyepiece magnification, as reflected in the snapshot above.

What is resolution in microscopy?

Resolution is the smallest distance at which two points can still be seen as separate. A microscope with high resolution lets you distinguish adjacent cellular structures; one with poor resolution makes them merge into a blur. Olympus Life Science explains resolution as a function of the objective lens and condenser design, not just magnification.

“The head, base, and arm are commonly identified as the microscope’s three structural parts.”

Guyana Ministry of Education

Different microscope classes handle these jobs in different ways. Light microscopes rely on visible light and glass lenses; electron microscopes use electron beams to reveal much smaller structures; confocal microscopes use laser scanning to sharpen focus in thick samples. The National Institutes of Health describes electron microscopy as a key method when resolution beyond light microscopy is needed.

The pattern: magnification enlarges, resolution clarifies, and illumination reveals; no single lens can compensate for failure in the other two.

Which lens is used in a microscope?

A standard compound microscope uses three lens systems: the objective, the eyepiece, and the condenser. The objective and eyepiece form the image; the condenser shapes the light that reaches the specimen.

What is the function of the objective lens?

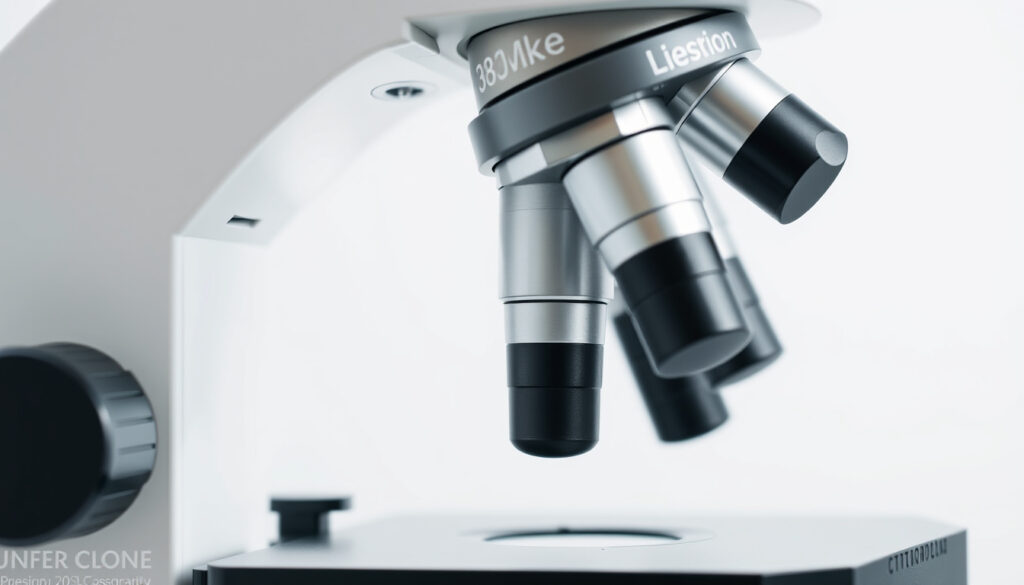

Objective lenses are the primary magnifying lenses. They sit on the revolving nosepiece, closest to the specimen, and each one has a different power. The 4x, 10x, 40x, and 100x objectives are standard on many school microscopes.

What is the function of the eyepiece?

The eyepiece, or ocular lens, is the lens you look through. It magnifies the image produced by the objective and usually has a 10x or 15x power. Because the eyepiece is the last lens before your eye, it also projects the image to a comfortable viewing distance.

What is the condenser lens?

The condenser sits below the stage and focuses light into a narrow cone that passes through the specimen. A well-adjusted condenser improves both brightness and contrast. Some teaching guides describe the body tube as the part that keeps the eyepiece and objectives aligned; that alignment matters because the condenser’s light cone must meet the objective at the correct angle, as noted in Applied Sciences teaching notes.

“The eyepiece, also called the ocular, is the lens viewed by the user and commonly has 10× or 15× power in school microscopes.”

Guyana Ministry of Education

The implication: the objective does the heavy optical lifting, while the eyepiece amplifies what the objective has already resolved.

What are the three lenses of a microscope called?

The three lens systems are the objective lens, the eyepiece lens, and the condenser lens. They are named by where they sit and what they do, not by their glass alone.

What is the objective lens?

The objective lens is the lower lens group, mounted on the revolving nosepiece and positioned closest to the specimen. It provides the first stage of magnification.

What is the eyepiece lens?

The eyepiece lens is the upper lens group, mounted in the head of the microscope. It takes the image from the objective and magnifies it again for the viewer.

What is the condenser lens?

The condenser lens is the lens group below the stage. It gathers light from the illuminator and focuses it on the plane of the specimen. A microscope can still form an image without a condenser, but the image may be dim and uneven.

“Objective lenses are positioned closest to the specimen and provide the principal magnification.”

Louis Pressbooks biology lab

What this means: all three lens groups work as a system; changing one changes the character of the whole image.

What is the 100X lens on a microscope called?

The 100x lens is an oil immersion objective. To work correctly, it needs a drop of immersion oil between the lens and the slide.

What does oil immersion mean?

Oil immersion means the space between the objective lens and the cover slip is filled with oil matched to the refractive index of glass. This prevents light from bending away from the lens and lets the objective collect more of the light that passes through the specimen. Encyclopaedia Britannica describes oil immersion as a way to increase the numerical aperture and useful magnification of the objective.

What is the 10x lens called?

The 10x lens is usually called the low-power objective. It gives a wide field of view and is the best starting point for locating a specimen.

What is the 40x lens called?

The 40x lens is the high-power objective. It reveals more detail but has a narrower field of view and requires careful focus adjustment. Together, the 10x and 40x objectives cover most routine laboratory work; the 100x lens is reserved for detailed work with oil immersion.

The catch: a high numerical aperture only helps if the oil forms a continuous bridge from the lens to the slide; an air bubble can ruin the effect.

What are the two main types of eyepieces?

The two main types of eyepieces are monocular and binocular. A monocular eyepiece has one tube, while a binocular eyepiece has two tubes so both eyes can view together.

What is a monocular eyepiece?

A monocular eyepiece uses a single viewing tube. It is common on student microscopes because it is simple and inexpensive, though viewing with one eye can cause eye strain over long sessions.

What is a binocular eyepiece?

A binocular eyepiece has two viewing tubes with adjustable distance between them. It allows more comfortable viewing and helps the brain fuse the image. Many binocular heads also include a trinocular port for a camera, which makes the microscope useful for documentation.

Modern microscope heads also include built-in digital cameras and LED illumination, and manufacturers such as Zeiss Microscopy reference show how these options affect the choice of a microscope head.

Understanding how the eye and brain process visual information can help you use a microscope effectively; a Colour Blind Test NZ shows how color perception affects the same optics. Readers who want another step-by-step science explainer can follow the same structure in How to Reduce Cholesterol.

The implication: the eyepiece determines comfort and compatibility, while the objective determines how much specimen detail is actually available.

Confirmed facts and open questions

Some microscope facts are stable across teaching guides, while others depend on the source you consult.

Confirmed by multiple teaching materials

• A compound microscope uses two lens systems, the objective and the eyepiece, to form the final image. Northern Arizona University guide
• The head, arm, and base are the three structural parts named in standard school materials. Rice University teaching lab

Open questions

• The exact inventor of the compound microscope is disputed; Zacharias Janssen is often credited, but historical evidence is not conclusive.
• A lower-confidence teaching PDF says the stage opening allows illumination to pass through or around the specimen; the role is physically necessary, but the source wording is less authoritative.

The pattern: core microscope anatomy is stable across educational systems, but peripheral details such as who invented the device and how to classify every small opening can vary.

Frequently asked questions

The catch: a microscope is only as reliable as its cleanest lens and most secure slide.

For a student or lab technician, the practical result is simple: choose the objective first, adjust focus and light, and let the eyepiece confirm what the objective has resolved.
